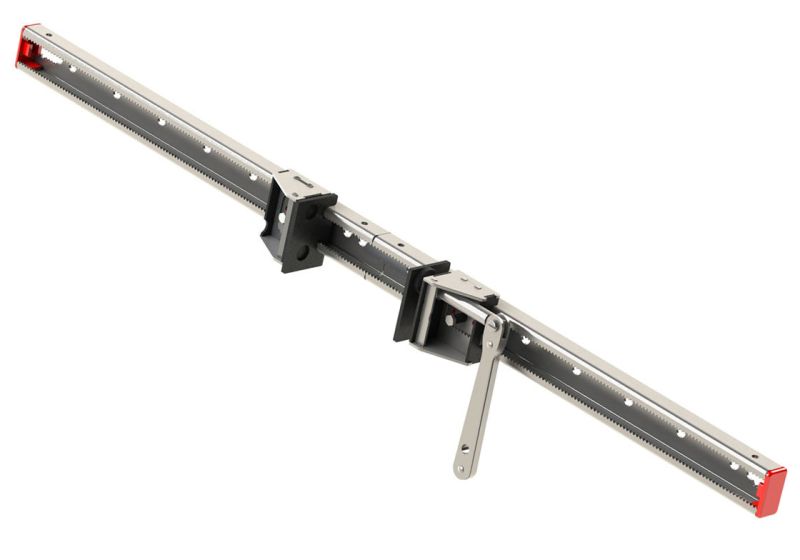

RALI press Evolution 1460
Key points vice RALI press Evolution 1460
Extremely simple immediate width adjustment, without screws. The block can be removed from the rail by pressing the screw. Release the screw to reposition the block.
Adapts to the piece
Movable plates on the blocks. The block adapts to all surfaces, even if the part has no parallel edges. This ensures that the pressure is optimally distributed.
Expandable with 365 mm rails
Available in 3 lengths (730, 1100 and 1460 mm). The additional rail kit is supplied with the rack-and-pinion connection and screws. In this way, the RALI press can be extended to any length at a later date.
Precise rail connection
The rail remains stable even under load. Thanks to the rack and pinion connection, which has been specially developed for very high loads, the pressure can be maximised, even with parts over one metre in size.
From a few grams up to 1.5 tons. The screw thread greatly increases the clamping force. The lever further increases this force. A fine tightening with the lever in the extension of the screw allows a very fine tightening of a few grams. At the other end, a clamping force of more than one ton is achieved by positioning the clamping lever perpendicular to the screw.
Horizontal and vertical clamping
Edge or flat planing. The RALI press was developed in such a way that the parts can be fixed in 3 dimensions: 1) a vertically mounted object, such as a planing board for edge planing, 2) a square planing part, such as the end of a planing board and 3) a piece for planing the surface or the edge of a door that is horizontally fixed and lies on the work surface.
Solid locking thanks to serrated (notched) profile
for maximum strength
Demonstration of vice RALI press Evolution 1460
Technical sheet vice RALI press Evolution 1460
|Vice||For flat and tube|
|Disposition||Vertical or horizontal|
|LxHxP handle excl.||1404x54x48 mm|
|LxHxW rail only||1404x19x34 mm|
|Useful length||1365 mm|
|LxHxW handle incl.||1404x130x48 mm|
