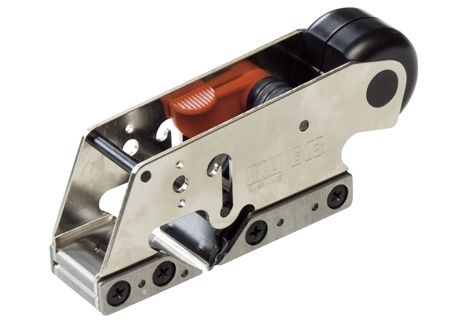

RALI G03 Evolution N
Description
The RALI G03 rabbet plane is the perfect tool for making small rabbets or rework, or even breaking a corner.
It's the one-handed rabbet plane, which sits perfectly in your palm, providing perfect support and guidance for the tool.
An optional guide can also be easily attached to the right-hand side of the tool for optimum guidance when rebating.
The RALI G03 rabbet plane features a heavy soleplate with a centrally located blade. The 30mm blades are compatible with all other RALI rabbet planes.
No more sharpening
Unique patented blade-change system in seconds. The blades supplied are bi-cut and reversible with a factory-set cutting edge.
Setting 1:
cutting depth
Instant cutting depth adjustment with red lever. There's no need to lay your plane down when you set it up. Simply retract the blade to the base.
Ideal grip
Thanks to its round, rear-mounted handle, the RALI G03 fits perfectly in the palm of the hand, with the finger positioned on the front for optimum tool guidance.
Blade always parallel
The original RALI blades are automatically locked in place and aligned parallel to the base by means of cleverly placed coded pins on the chipbreakers.
Very, very long blade life
1 mile of chips with a single blade: this is the test carried out at the factory with a chrome blade dedicated to working with soft to medium woods.
Innovative heavy sole
RALI has designed a unique two-part lamellar sole. This significantly reduces friction with the material. Unlike molded soles, this sole can be repaired in the event of damage.
A useful guide (optionnal)
A guide is available in option for the rabbet plane G03 Evolution N. It can be mounted on the right or left of the tool in seconds, without the need for additional tools. Two adjustment knobs let you fine-tune the tool for precise work.
5-year warranty offered
We offer a 5-year warranty instead of 2.
As a manufacturer, we can supply all spare parts for your future plane.
Technical sheet handplane RALI G03 Evolution N
| Product code | 105715 |
| Weight | 0.458000 |
| L x H x W | 165x50x80 |
| Function | Rebate plane |
| Chipbreaker | Fixed |
| Mouth | Fixed |
| Cutting depth | Adjustable |
| Blade type | straight |
| Included | 1 chrome steel blade 30mm |
| Color | Black |
| Side | Nickel |
| Length | 105 mm |
| Type | Rebate |
| Sole | Heavy |
| Double-edged blade | Yes |
| Resharpenable | No |
| Country of Manufacture | Switzerland |
